Name: FODB100
Brand: onsemi
SKU: FODB100
Availability: InStock

REF: FODB100 onsemi

FODB100

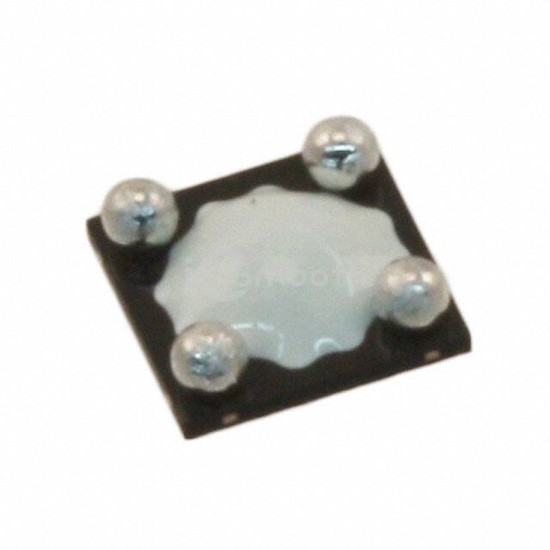

OPTOISO 2.5KV TRANSISTOR 4BGA

FODB100 is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 2.5KV TRANSISTOR 4BGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.5V (Max), package / case 4-TEBGA.

Datasheet Request a Quote

In Stock: 9,863

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	100% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	3µs, 5µs
Rise / Fall Time (Typ)	1µs, 5µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	75V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.5V (Max)
Current - DC Forward (If) (Max)	30 mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	4-TEBGA
Supplier Device Package	4-BGA (3.5x3.5)
