Name: FOD8802DR2
Brand: onsemi
SKU: FOD8802DR2
Price: 1.55 USD
Availability: InStock

REF: FOD8802DR2 onsemi

FOD8802DR2

DUAL CHANNEL OPTOHIT SERIES, HIG

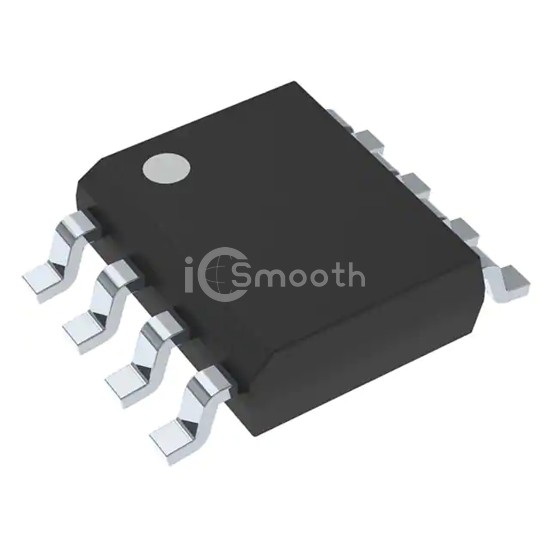

FOD8802DR2 is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. DUAL CHANNEL OPTOHIT SERIES, HIG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.35V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 8,451

Tiered Pricing USD

1+ $1.5500 —

10+ $1.1300 -27%

25+ $1.0260 -34%

100+ $0.9116 -41%

250+ $0.8570 -45%

500+ $0.8241 -47%

1,000+ $0.7970 -49% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	70% @ 1mA
Current Transfer Ratio (Max)	380% @ 1mA
Turn On / Turn Off Time (Typ)	6µs, 6µs
Rise / Fall Time (Typ)	6µs, 7µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	75V
Current - Output / Channel	30mA
Voltage - Forward (Vf) (Typ)	1.35V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
