Name: FOD852SD
Brand: onsemi
SKU: FOD852SD
Price: 1.02 USD
Availability: InStock

REF: FOD852SD onsemi

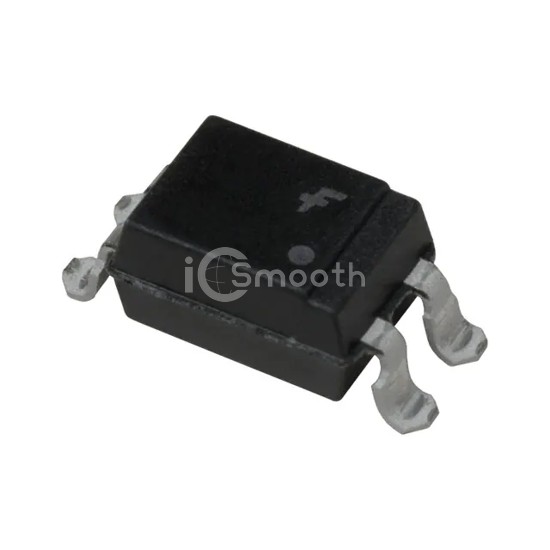

FOD852SD

OPTOISOLATOR 5KV DARLINGTON 4SMD

FOD852SD is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISOLATOR 5KV DARLINGTON 4SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 53,900

Tiered Pricing USD

1+ $1.0200 —

10+ $0.7160 -30%

100+ $0.5293 -48%

500+ $0.4463 -56% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	1000% @ 1mA
Current Transfer Ratio (Max)	15000% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	100µs, 20µs
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	300V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1.2V
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
