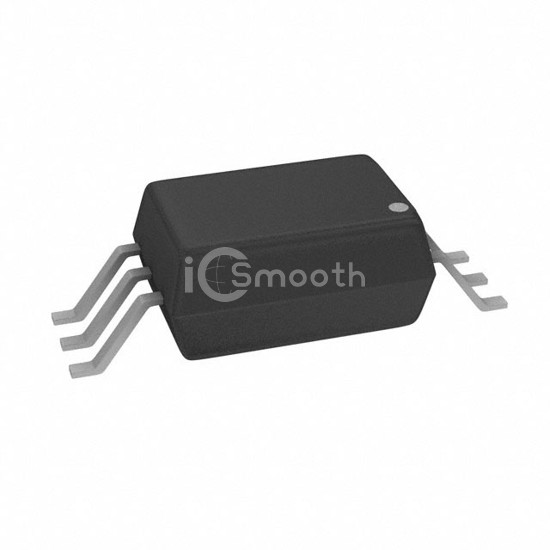

Name: FOD8482TR2
Brand: onsemi
SKU: FOD8482TR2
Price: 2.28 USD
Availability: InStock

REF: FOD8482TR2 onsemi

FOD8482TR2

IPM DRIVER WL T&R

FOD8482TR2 is a Isolators - Gate Drivers manufactured by onsemi. IPM DRIVER WL T&R. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.4V, package / case 6-SOIC (0.268", 6.80mm Width).

Datasheet Request a Quote

In Stock: 1,000

Tiered Pricing USD

1+ $2.2800 —

10+ $1.6870 -26%

25+ $1.5396 -32%

100+ $1.3776 -40%

250+ $1.3003 -43%

500+ $1.2537 -45% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Propagation Delay tpLH / tpHL (Max)	300ns, 300ns
Pulse Width Distortion (Max)	250ns
Rise / Fall Time (Typ)	15ns, 10ns
Current - Output High, Low	-

Current - Peak Output	-
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	20 mA
Voltage - Output Supply	4.5V ~ 30V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package	6-SOP
Approval Agency	VDE
