Name: FOD8482T
Brand: onsemi
SKU: FOD8482T
Price: 3.43 USD
Availability: InStock

REF: FOD8482T onsemi

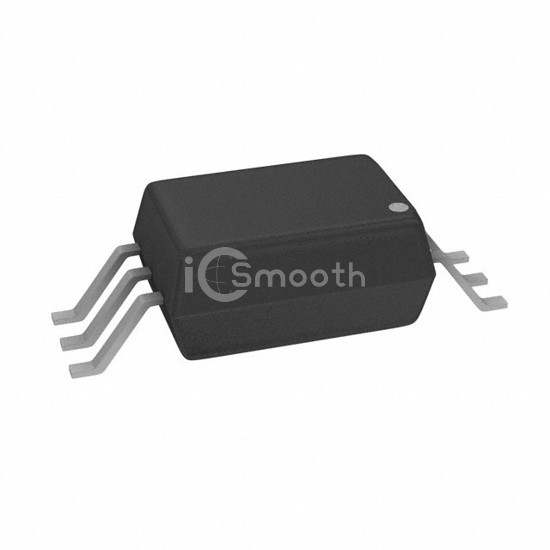

FOD8482T

IPM DRIVER 1MB 6SOIC

FOD8482T is a Isolators - Gate Drivers manufactured by onsemi. IPM DRIVER 1MB 6SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.4V, package / case 6-SOIC (0.268", 6.80mm Width).

Request a Quote

In Stock: 4,869

Tiered Pricing USD

1+ $3.4300 —

10+ $2.1880 -36%

25+ $1.8644 -46%

100+ $1.4983 -56%

250+ $1.3186 -62%

500+ $1.2080 -65%

2,000+ $1.0500 -69% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Propagation Delay tpLH / tpHL (Max)	300ns, 300ns
Pulse Width Distortion (Max)	250ns
Rise / Fall Time (Typ)	15ns, 10ns
Current - Output High, Low	2.5mA, 2.5mA

Current - Peak Output	-
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	20 mA
Voltage - Output Supply	4.5V ~ 30V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package	6-SOP
Approval Agency	IEC/EN/DIN, UL, VDE
