FOD8383R2

In Stock: 8,332

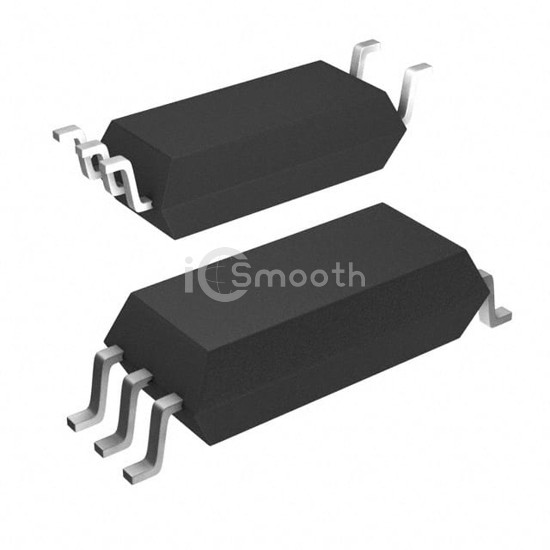

FOD8383R2 - onsemi - Isolators - Gate Drivers
REF: FOD8383R2 onsemi
FOD8383R2

onsemi

OPTOISO 5KV 1CH GATE DRIVER 5SOP

FOD8383R2 is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 5KV 1CH GATE DRIVER 5SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.43V, package / case 6-SOIC (0.362", 9.20mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 8,332

Tiered Pricing USD
1+ $5.9300 —
10+ $4.4470 -25%
100+ $3.5736 -40%
500+ $3.2450 -45% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)35kV/µs
Propagation Delay tpLH / tpHL (Max)210ns, 210ns
Pulse Width Distortion (Max)65ns
Rise / Fall Time (Typ)35ns, 25ns
Current - Output High, Low2.5A, 2.5A
Current - Peak Output3A
Voltage - Forward (Vf) (Typ)1.43V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.362", 9.20mm Width), 5 Leads
Supplier Device Package5-SOP
Approval AgencyUL
