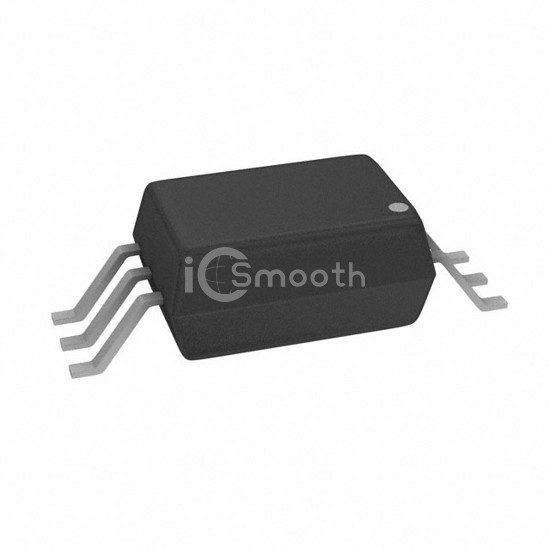

Name: FOD8342TR2V
Brand: onsemi
SKU: FOD8342TR2V
Price: 1.54 USD
Availability: InStock

REF: FOD8342TR2V onsemi

FOD8342TR2V

OPTOISO 5KV 1CH GATE DRIVER 6SOP

FOD8342TR2V is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 5KV 1CH GATE DRIVER 6SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.5V, package / case 6-SOIC (0.268", 6.80mm Width).

Datasheet Request a Quote

In Stock: 1

Tiered Pricing USD

1+ $1.5400 —

10+ $1.0950 -29%

100+ $0.8250 -46%

500+ $0.7056 -54% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Propagation Delay tpLH / tpHL (Max)	210ns, 210ns
Pulse Width Distortion (Max)	65ns
Rise / Fall Time (Typ)	38ns, 24ns
Current - Output High, Low	2.5A, 2.5A

Current - Peak Output	3A
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	10V ~ 30V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package	6-SOP
Approval Agency	IEC/EN/DIN, UR
