FOD8334R2

In Stock: 4,250

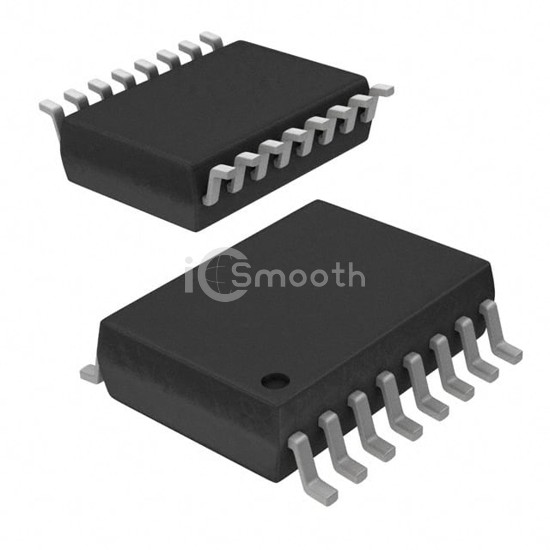

FOD8334R2 - onsemi - Isolators - Gate Drivers
REF: FOD8334R2 onsemi
FOD8334R2

onsemi

INPUT LED DRIVE 3.0A GATE DRIVER

FOD8334R2 is a Isolators - Gate Drivers manufactured by onsemi. INPUT LED DRIVE 3.0A GATE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 16-SOIC (0.295", 7.50mm Width).

Request a Quote

In Stock: 4,250

Tiered Pricing USD
1+ $8.4800 —
10+ $6.4630 -24%
100+ $5.2816 -38% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation4243Vrms
Common Mode Transient Immunity (Min)35kV/µs
Propagation Delay tpLH / tpHL (Max)250ns, 250ns
Pulse Width Distortion (Max)100ns
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low3A, 3A
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)1.45V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply3V ~ 15V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SO
Approval AgencyUL
