FOD8332R2

In Stock: 4,247

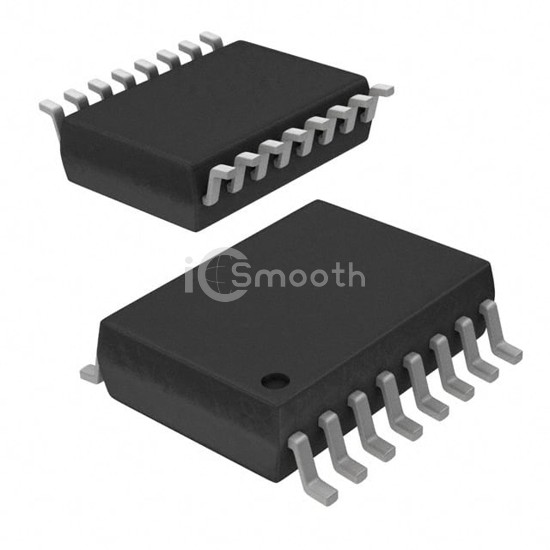

FOD8332R2 - onsemi - Isolators - Gate Drivers
REF: FOD8332R2 onsemi
FOD8332R2

onsemi

OPTOISO 4.243KV GATE DRIVER 16SO

FOD8332R2 is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 4.243KV GATE DRIVER 16SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 4,247

Tiered Pricing USD
1+ $6.2300 —
10+ $4.6780 -25%
100+ $3.7685 -40% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation4243Vrms
Common Mode Transient Immunity (Min)35kV/µs
Propagation Delay tpLH / tpHL (Max)250ns, 250ns
Pulse Width Distortion (Max)100ns
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low2.5A, 2.5A
Current - Peak Output3A
Voltage - Forward (Vf) (Typ)1.45V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply3V ~ 15V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SO
Approval AgencyUL
