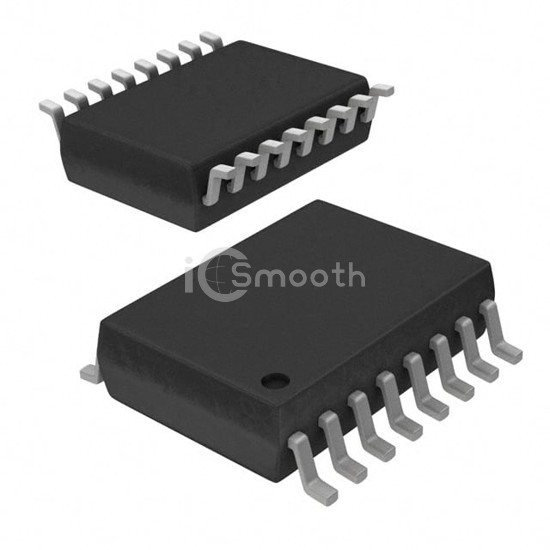

Name: FOD8332
Brand: onsemi
SKU: FOD8332
Price: 6.23 USD
Availability: InStock

REF: FOD8332 onsemi

FOD8332

OPTOISO 4.243KV GATE DRIVER 16SO

FOD8332 is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 4.243KV GATE DRIVER 16SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,712

Tiered Pricing USD

1+ $6.2300 —

50+ $3.9926 -36%

100+ $3.7685 -40%

500+ $3.3712 -46%

1,000+ $3.2421 -48%

2,000+ $3.1330 -50% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	4243Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	250ns, 250ns
Pulse Width Distortion (Max)	100ns
Rise / Fall Time (Typ)	50ns, 50ns
Current - Output High, Low	2.5A, 2.5A

Current - Peak Output	3A
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	3V ~ 15V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SO
Approval Agency	UL
