Name: FOD8321R2V
Brand: onsemi
SKU: FOD8321R2V
Price: 5.92 USD
Availability: InStock

REF: FOD8321R2V onsemi

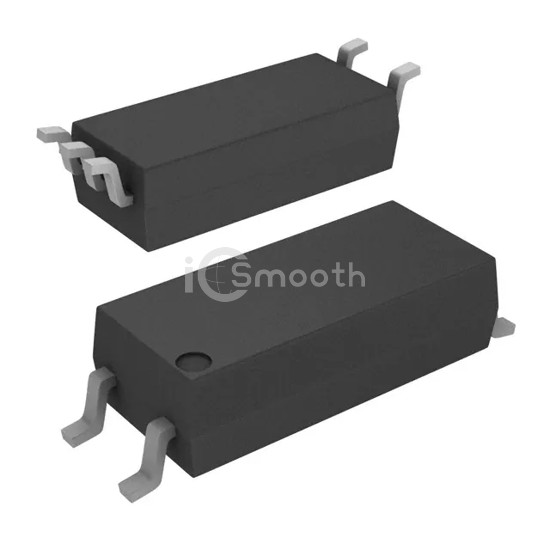

FOD8321R2V

OPTOISO 5KV 1CH GATE DRIVER 5SOP

FOD8321R2V is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 5KV 1CH GATE DRIVER 5SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.5V, package / case 6-SOIC (0.346", 8.80mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 3,430

Tiered Pricing USD

1+ $5.9200 —

10+ $4.4390 -25%

100+ $3.5668 -40%

500+ $3.2381 -45% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Pulse Width Distortion (Max)	300ns
Rise / Fall Time (Typ)	60ns, 60ns
Current - Output High, Low	2A, 2A

Current - Peak Output	3A
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	16V ~ 30V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.346", 8.80mm Width), 5 Leads
Supplier Device Package	5-SOP
Approval Agency	IEC/EN/DIN, UL
