FOD8321R2

In Stock: 7

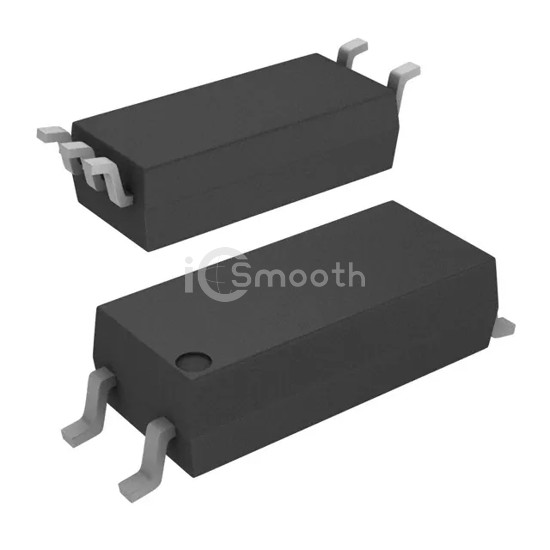

FOD8321R2 - onsemi - Isolators - Gate Drivers
REF: FOD8321R2 onsemi
FOD8321R2

onsemi

OPTOISO 5KV 1CH GATE DRIVER 5SOP

FOD8321R2 is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 5KV 1CH GATE DRIVER 5SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.5V, package / case 6-SOIC (0.346", 8.80mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 7

Tiered Pricing USD
1+ $6.1600 —
10+ $4.6290 -25%
100+ $3.7266 -40%
500+ $3.4000 -45% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)20kV/µs
Propagation Delay tpLH / tpHL (Max)500ns, 500ns
Pulse Width Distortion (Max)300ns
Rise / Fall Time (Typ)60ns, 60ns
Current - Output High, Low2A, 2A
Current - Peak Output3A
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply16V ~ 30V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.346", 8.80mm Width), 5 Leads
Supplier Device Package5-SOP
Approval AgencyUL
