Name: FOD8316R2V
Brand: onsemi
SKU: FOD8316R2V
Price: 6.23 USD
Availability: InStock

REF: FOD8316R2V onsemi

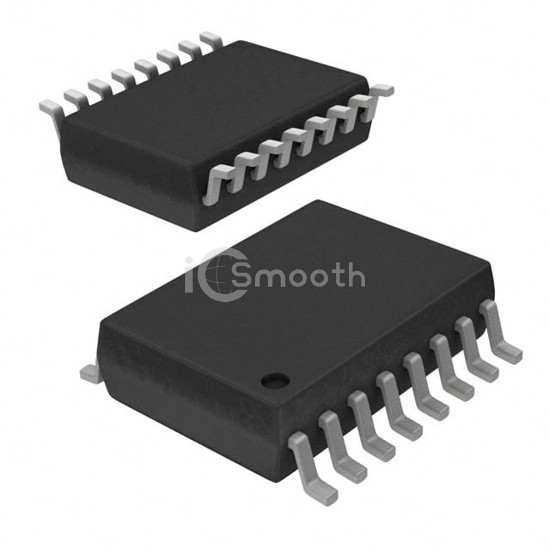

FOD8316R2V

OPTOISO 4.243KV GATE DRIVER 16SO

FOD8316R2V is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 4.243KV GATE DRIVER 16SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case 16-SOIC (0.295", 7.50mm Width), approval agency IEC/EN/DIN, UL.

Datasheet Request a Quote

In Stock: 4,690

Tiered Pricing USD

1+ $6.2300 —

10+ $4.6780 -25%

100+ $3.7685 -40% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	4243Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Pulse Width Distortion (Max)	300ns
Rise / Fall Time (Typ)	34ns, 34ns
Current - Output High, Low	2.5A, 2.5A

Current - Peak Output	3A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SO
Approval Agency	IEC/EN/DIN, UL
