Name: FOD817CS
Brand: onsemi
SKU: FOD817CS
Price: 0.42 USD
Availability: InStock

REF: FOD817CS onsemi

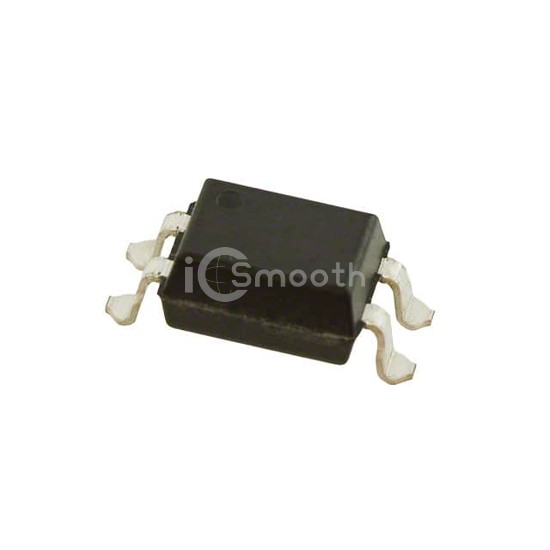

FOD817CS

OPTOISOLATOR 5KV TRANSISTOR 4SMD

FOD817CS is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISOLATOR 5KV TRANSISTOR 4SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 7,168

Tiered Pricing USD

1+ $0.4200 —

10+ $0.2870 -32%

100+ $0.2044 -51%

500+ $0.1671 -60%

1,000+ $0.1549 -63%

2,000+ $0.1444 -66%

5,000+ $0.1330 -68%

10,000+ $0.1258 -70%

25,000+ $0.1180 -72% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	200% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
