Name: FOD617AS
Brand: onsemi
SKU: FOD617AS
Price: 0.12 USD
Availability: InStock

REF: FOD617AS onsemi

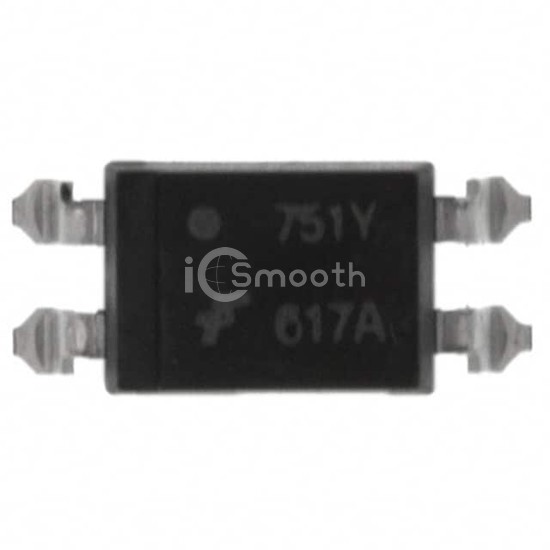

FOD617AS

OPTOISOLATOR 5KV TRANSISTOR 4SMD

FOD617AS is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISOLATOR 5KV TRANSISTOR 4SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.35V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,814

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	40% @ 10mA
Current Transfer Ratio (Max)	80% @ 10mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.35V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
