FOD420S

In Stock: 6,797

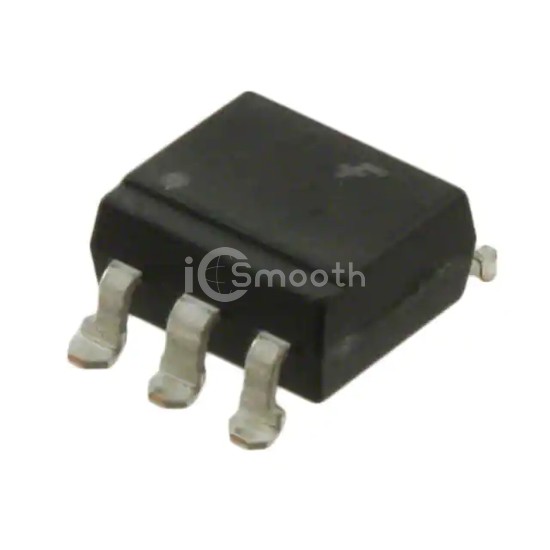

FOD420S - onsemi - Optoisolators - Triac, SCR Output
REF: FOD420S onsemi
FOD420S

onsemi

OPTOISOLATOR 5KV TRIAC 6SMD

FOD420S is a Optoisolators - Triac, SCR Output manufactured by onsemi. OPTOISOLATOR 5KV TRIAC 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.28V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 6,797

Tiered Pricing USD
1+ $4.0900 —
10+ $3.0200 -26%
100+ $2.3845 -42%
500+ $2.1061 -49%
1,000+ $2.0156 -51%
2,000+ $1.9389 -53%
5,000+ $1.8555 -55% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State600 V
Static dV/dt (Min)10kV/µs
Current - LED Trigger (Ift) (Max)2mA
Current - On State (It (RMS)) (Max)-
Current - Hold (Ih)500µA
Turn On Time60µs
Voltage - Forward (Vf) (Typ)1.28V
Current - DC Forward (If) (Max)30 mA
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
Approval AgencycUL, FIMKO, UL
