FOD4118SD

In Stock: 1,327

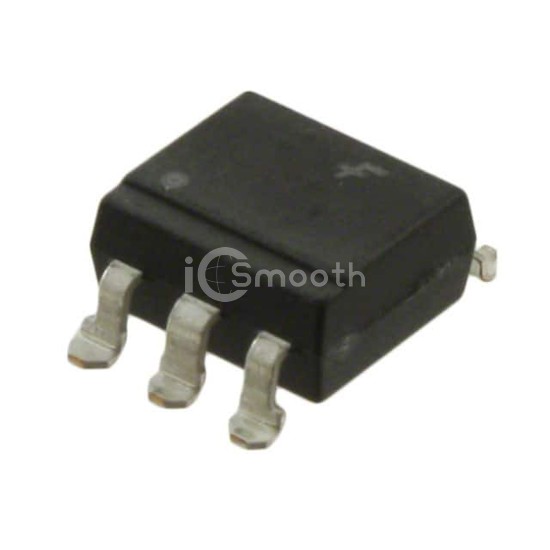

FOD4118SD - onsemi - Optoisolators - Triac, SCR Output
REF: FOD4118SD onsemi
FOD4118SD

onsemi

OPTOISOLATOR 5KV TRIAC 6SMD

FOD4118SD is a Optoisolators - Triac, SCR Output manufactured by onsemi. OPTOISOLATOR 5KV TRIAC 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,327

Tiered Pricing USD
1+ $4.2200 —
10+ $3.1180 -26%
100+ $2.4656 -42%
500+ $2.1798 -48% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitYes
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State800 V
Static dV/dt (Min)10kV/µs
Current - LED Trigger (Ift) (Max)1.3mA
Current - On State (It (RMS)) (Max)-
Current - Hold (Ih)500µA
Turn On Time60µs
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)30 mA
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
Approval AgencyCSA, UL
