Name: FOD3184TSV
Brand: onsemi
SKU: FOD3184TSV
Price: 3.33 USD
Availability: InStock

REF: FOD3184TSV onsemi

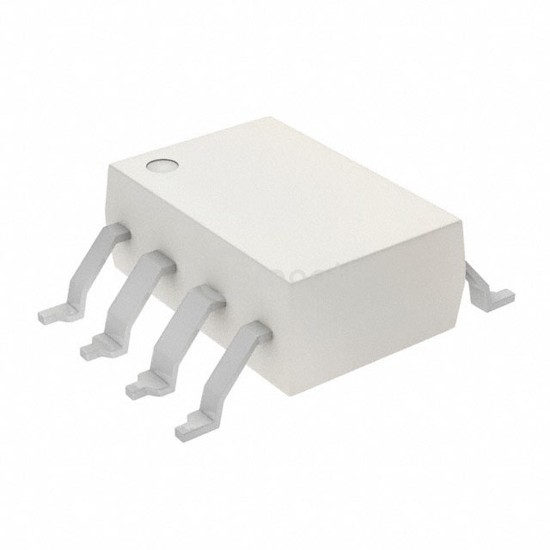

FOD3184TSV

OPTOISO 5KV 1CH GATE DRIVER 8SMD

FOD3184TSV is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 5KV 1CH GATE DRIVER 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.43V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 3,811

Tiered Pricing USD

1+ $3.3300 —

10+ $2.4380 -27%

100+ $1.9058 -43%

500+ $1.6724 -50%

1,000+ $1.5964 -52%

2,000+ $1.5320 -54%

5,000+ $1.4620 -56% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	210ns, 210ns
Pulse Width Distortion (Max)	65ns
Rise / Fall Time (Typ)	38ns, 24ns
Current - Output High, Low	2.5A, 2.5A

Current - Peak Output	3A
Voltage - Forward (Vf) (Typ)	1.43V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
Approval Agency	IEC/EN/DIN, UL
