Name: FOD3184TSD
Brand: onsemi
SKU: FOD3184TSD
Price: 1.38 USD
Availability: InStock

REF: FOD3184TSD onsemi

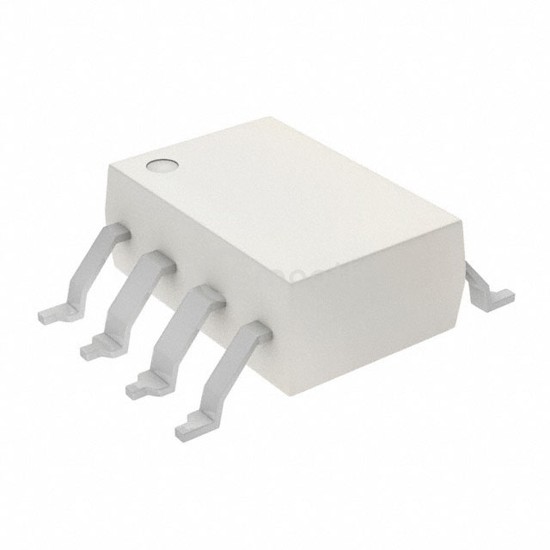

FOD3184TSD

OPTOISO 5KV 1CH GATE DRIVER 8SMD

FOD3184TSD is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 5KV 1CH GATE DRIVER 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.43V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,966

Tiered Pricing USD

1,000+ $1.3829 —

2,000+ $1.3267 -4%

3,000+ $1.2987 -6%

5,000+ $1.2677 -8%

7,000+ $1.2500 -10% BEST

Specifications

18 parameters

Product Status	Not For New Designs
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	210ns, 210ns
Pulse Width Distortion (Max)	65ns
Rise / Fall Time (Typ)	38ns, 24ns
Current - Output High, Low	2.5A, 2.5A

Current - Peak Output	3A
Voltage - Forward (Vf) (Typ)	1.43V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
Approval Agency	UL
