FOD3182TSR2V

In Stock: 8,675

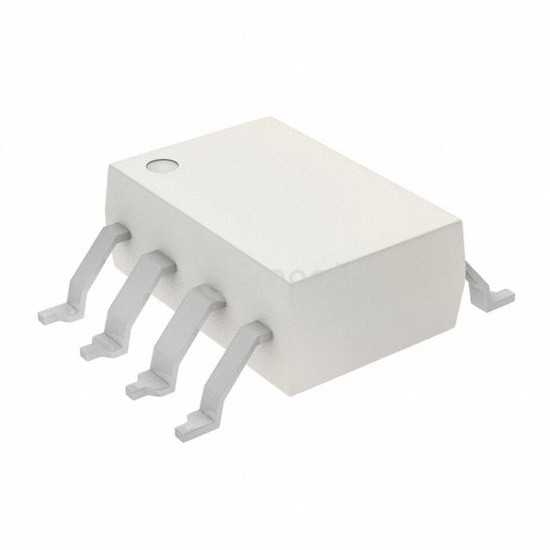

FOD3182TSR2V - onsemi - Isolators - Gate Drivers
REF: FOD3182TSR2V onsemi
FOD3182TSR2V

onsemi

OPTOISO 5KV 1CH GATE DRIVER 8SMD

FOD3182TSR2V is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 5KV 1CH GATE DRIVER 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.43V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 8,675

Tiered Pricing USD
1+ $3.3000 —
10+ $2.4120 -27%
100+ $1.8851 -43% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)35kV/µs
Propagation Delay tpLH / tpHL (Max)210ns, 210ns
Pulse Width Distortion (Max)65ns
Rise / Fall Time (Typ)38ns, 24ns
Current - Output High, Low2.5A, 2.5A
Current - Peak Output3A
Voltage - Forward (Vf) (Typ)1.43V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply10V ~ 30V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
Approval AgencyUL, VDE
