Name: FOD3180TV
Brand: onsemi
SKU: FOD3180TV
Price: 3.28 USD
Availability: InStock

REF: FOD3180TV onsemi

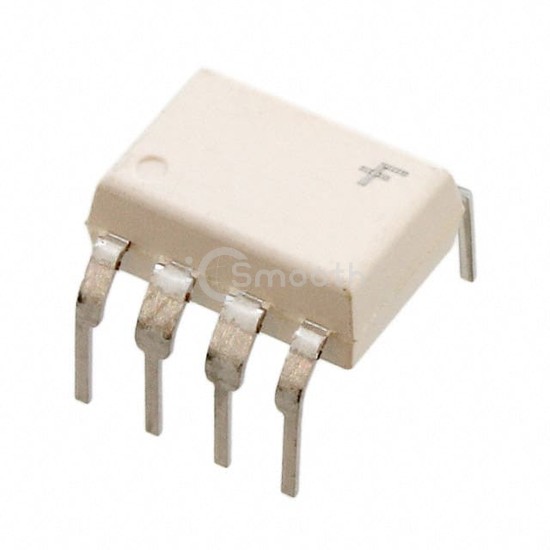

FOD3180TV

OPTOISO 5KV 1CH GATE DRIVER 8DIP

FOD3180TV is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 5KV 1CH GATE DRIVER 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.43V, package / case 8-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 2,763

Tiered Pricing USD

1+ $3.2800 —

50+ $1.9996 -39%

100+ $1.8701 -43%

500+ $1.6401 -50%

1,000+ $1.5652 -52%

2,000+ $1.5018 -54%

5,000+ $1.4328 -56% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	15kV/µs
Propagation Delay tpLH / tpHL (Max)	200ns, 200ns
Pulse Width Distortion (Max)	65ns
Rise / Fall Time (Typ)	75ns, 55ns
Current - Output High, Low	2A, 2A

Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.43V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	10V ~ 20V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.400", 10.16mm)
Supplier Device Package	8-MDIP
Approval Agency	cUL, UL, VDE
