FOD3120TSR2V

In Stock: 1,714

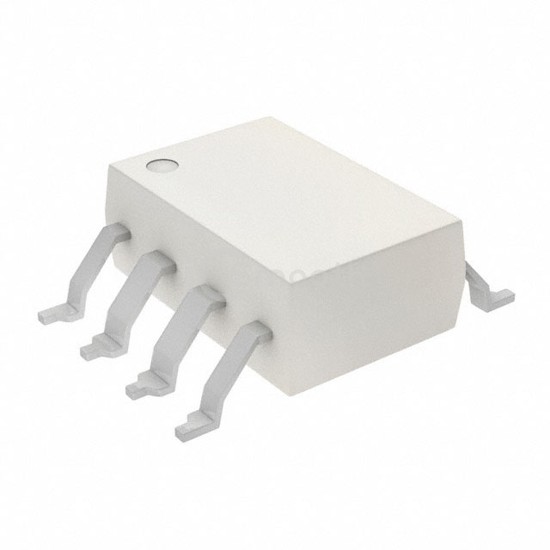

FOD3120TSR2V - onsemi - Isolators - Gate Drivers
REF: FOD3120TSR2V onsemi
FOD3120TSR2V

onsemi

OPTOISO 5KV 1CH GATE DRIVER 8SMD

FOD3120TSR2V is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 5KV 1CH GATE DRIVER 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.5V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,714

Tiered Pricing USD
1+ $2.4300 —
10+ $1.7570 -28%
100+ $1.3530 -44% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)35kV/µs
Propagation Delay tpLH / tpHL (Max)400ns, 400ns
Pulse Width Distortion (Max)100ns
Rise / Fall Time (Typ)60ns, 60ns
Current - Output High, Low2A, 2A
Current - Peak Output3A
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
Approval AgencyIEC, UL
