FOD3120SD

In Stock: 630

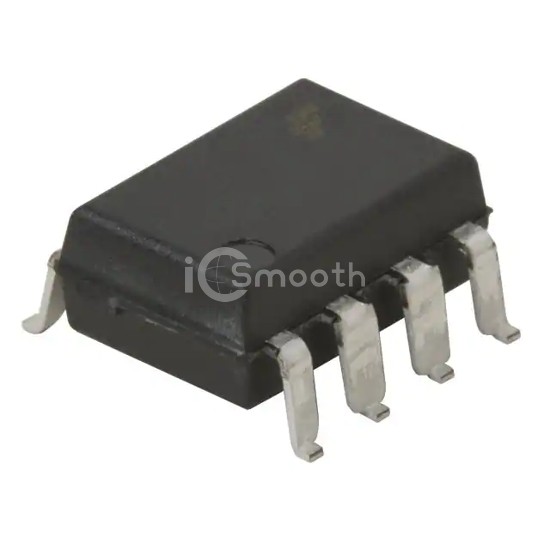

FOD3120SD - onsemi - Isolators - Gate Drivers
REF: FOD3120SD onsemi
FOD3120SD

onsemi

OPTOISO 5KV 1CH GATE DRIVER 8SMD

FOD3120SD is a Isolators - Gate Drivers manufactured by onsemi. OPTOISO 5KV 1CH GATE DRIVER 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.5V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 630

Tiered Pricing USD
1+ $2.5000 —
10+ $1.8060 -28%
100+ $1.3922 -44%
500+ $1.2102 -52% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)35kV/µs
Propagation Delay tpLH / tpHL (Max)400ns, 400ns
Pulse Width Distortion (Max)100ns
Rise / Fall Time (Typ)60ns, 60ns
Current - Output High, Low2A, 2A
Current - Peak Output3A
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
Approval AgencyUL
