FMG2G50US120

In Stock: 4,831

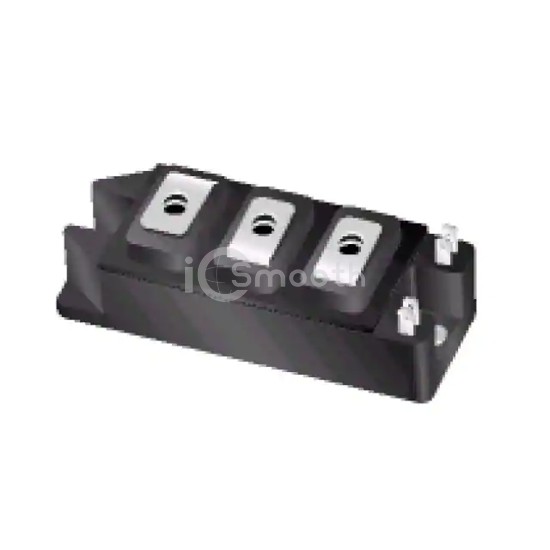

FMG2G50US120 - onsemi - Transistors - IGBTs - Modules
REF: FMG2G50US120 onsemi
FMG2G50US120

onsemi

IGBT MODULE 1200V 50A 320W 7PMGA

FMG2G50US120 is a Transistors - IGBTs - Modules manufactured by onsemi. IGBT MODULE 1200V 50A 320W 7PMGA. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case 7PM-GA, current - collector (ic) (max) 50 A.

Datasheet Request a Quote

In Stock: 4,831

Specifications

15 parameters
Product StatusObsolete
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)50 A
Power - Max320 W
Vce(on) (Max) @ Vge, Ic3V @ 15V, 50A
Current - Collector Cutoff (Max)3 mA
Input Capacitance (Cies) @ Vce-
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / Case7PM-GA
Supplier Device Package7PM-GA
