FMG2G100US60

In Stock: 3,857

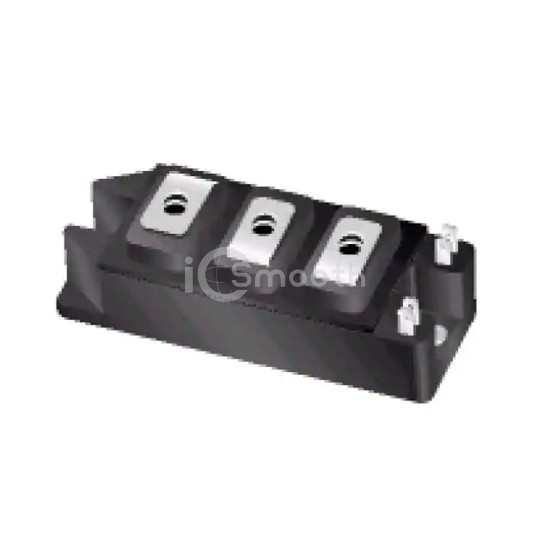

FMG2G100US60 - onsemi - Transistors - IGBTs - Modules
REF: FMG2G100US60 onsemi
FMG2G100US60

onsemi

IGBT MODULE 600V 100A 400W 7PMGA

FMG2G100US60 is a Transistors - IGBTs - Modules manufactured by onsemi. IGBT MODULE 600V 100A 400W 7PMGA. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case 7PM-GA, current - collector (ic) (max) 100 A.

Datasheet Request a Quote

In Stock: 3,857

Specifications

15 parameters
Product StatusObsolete
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)100 A
Power - Max400 W
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 100A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce10.84 nF @ 30 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / Case7PM-GA
Supplier Device Package7PM-GA
