FJY3004R-ON

In Stock: 135,699

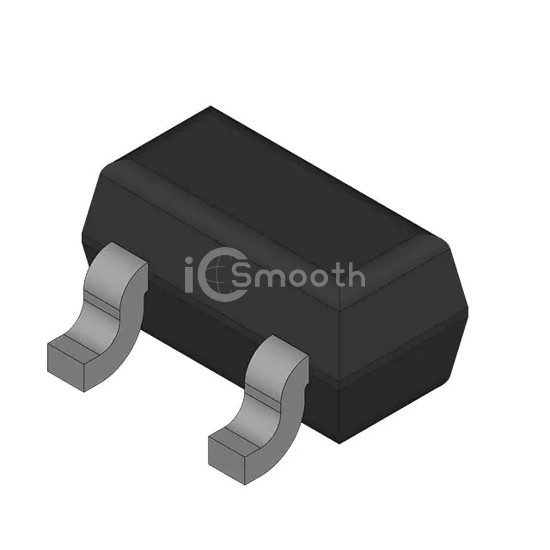

FJY3004R-ON - onsemi - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: FJY3004R-ON onsemi
FJY3004R-ON

onsemi

0.1A, 50V, NPN

FJY3004R-ON is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by onsemi. 0.1A, 50V, NPN. Key specifications: mounting type Surface Mount, package / case SC-89, SOT-490, current - collector (ic) (max) 100 mA, power - max 200 mW.

Datasheet Request a Quote

In Stock: 135,699

Specifications

14 parameters
Product StatusActive
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)47 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce56 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)100nA (ICBO)
Frequency - Transition250 MHz
Power - Max200 mW
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSOT-523F
