FGY160T65SPD-F085

In Stock: 887

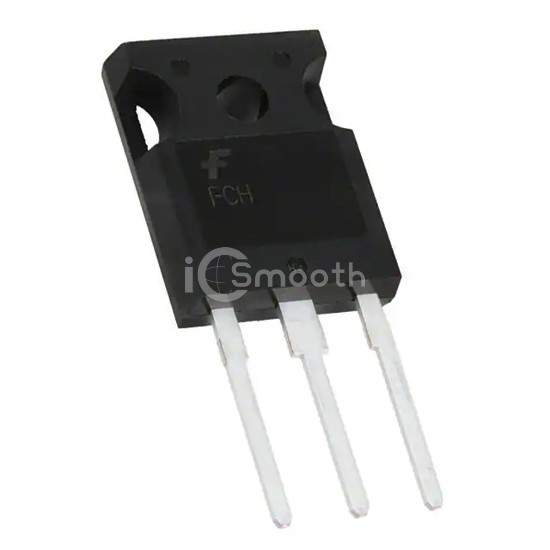

FGY160T65SPD-F085 - onsemi - Transistors - IGBTs - Single
REF: FGY160T65SPD-F085 onsemi
FGY160T65SPD-F085

onsemi

650V FS GEN3 TRENCH IGBT

FGY160T65SPD-F085 is a Transistors - IGBTs - Single manufactured by onsemi. 650V FS GEN3 TRENCH IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 240 A.

Datasheet Request a Quote

In Stock: 887

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)240 A
Current - Collector Pulsed (Icm)480 A
Vce(on) (Max) @ Vge, Ic2.05V @ 15V, 160A
Power - Max882 W
Switching Energy12.4mJ (on), 5.7mJ (off)
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C53ns/98ns
Test Condition400V, 160A, 15V
Reverse Recovery Time (trr)132 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
