FGPF10N60UNDF

In Stock: 7,410

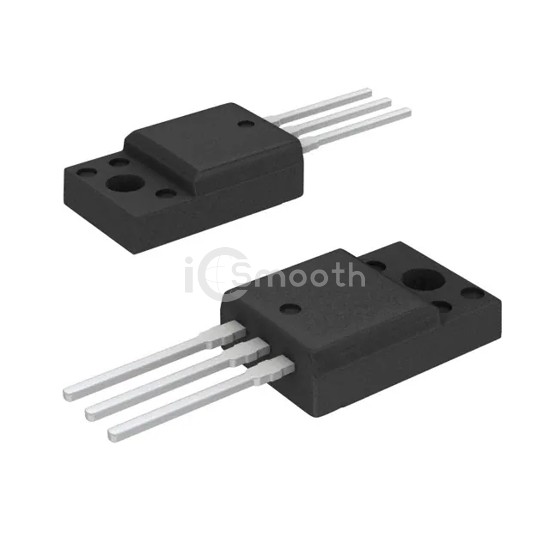

FGPF10N60UNDF - onsemi - Transistors - IGBTs - Single
REF: FGPF10N60UNDF onsemi
FGPF10N60UNDF

onsemi

IGBT 600V 20A 42W TO-220F

FGPF10N60UNDF is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 20A 42W TO-220F. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 20 A.

Datasheet Request a Quote

In Stock: 7,410

Specifications

17 parameters
Product StatusObsolete
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)20 A
Current - Collector Pulsed (Icm)30 A
Vce(on) (Max) @ Vge, Ic2.45V @ 15V, 10A
Power - Max42 W
Switching Energy150µJ (on), 50µJ (off)
Input TypeStandard
Gate Charge37 nC
Td (on/off) @ 25°C8ns/52.2ns
Test Condition400V, 10A, 10Ohm, 15V
Reverse Recovery Time (trr)37.7 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220F-3
