FGH80N60FDTU

In Stock: 9,896

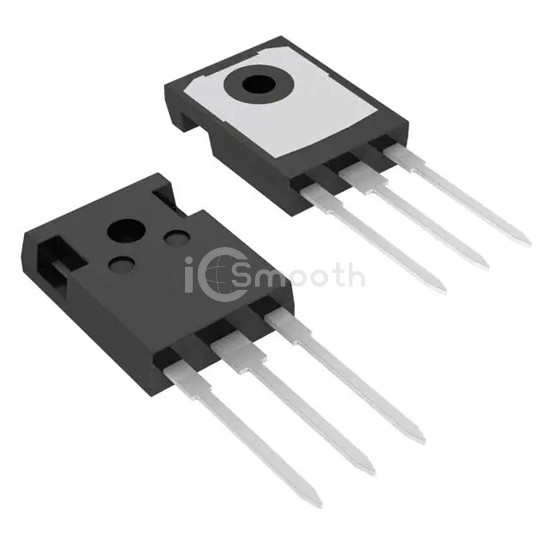

FGH80N60FDTU - onsemi - Transistors - IGBTs - Single
REF: FGH80N60FDTU onsemi
FGH80N60FDTU

onsemi

IGBT 600V 80A 290W TO247

FGH80N60FDTU is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 80A 290W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 9,896

Specifications

17 parameters
Product StatusObsolete
IGBT TypeField Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 40A
Power - Max290 W
Switching Energy1mJ (on), 520µJ (off)
Input TypeStandard
Gate Charge120 nC
Td (on/off) @ 25°C21ns/126ns
Test Condition400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)36 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
