FGH75T65SHDTL4

In Stock: 7,001

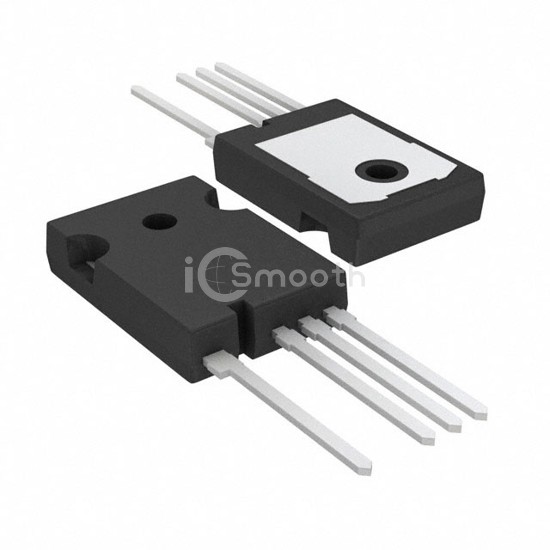

FGH75T65SHDTL4 - onsemi - Transistors - IGBTs - Single
REF: FGH75T65SHDTL4 onsemi
FGH75T65SHDTL4

onsemi

IGBT FIELD STOP 650V 150A TO247

FGH75T65SHDTL4 is a Transistors - IGBTs - Single manufactured by onsemi. IGBT FIELD STOP 650V 150A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 150 A.

Datasheet Request a Quote

In Stock: 7,001

Specifications

17 parameters
Product StatusActive
IGBT TypeField Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)150 A
Current - Collector Pulsed (Icm)300 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 75A
Power - Max455 W
Switching Energy1.06mJ (on), 1.56mJ (off)
Input TypeStandard
Gate Charge126 nC
Td (on/off) @ 25°C55ns/189ns
Test Condition400V, 75A, 15Ohm, 15V
Reverse Recovery Time (trr)76 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackageTO-247
