FGH60N60SMD-F085

In Stock: 145
FGH60N60SMD-F085 - onsemi - Transistors - IGBTs - Single
REF: FGH60N60SMD-F085 onsemi
FGH60N60SMD-F085

onsemi

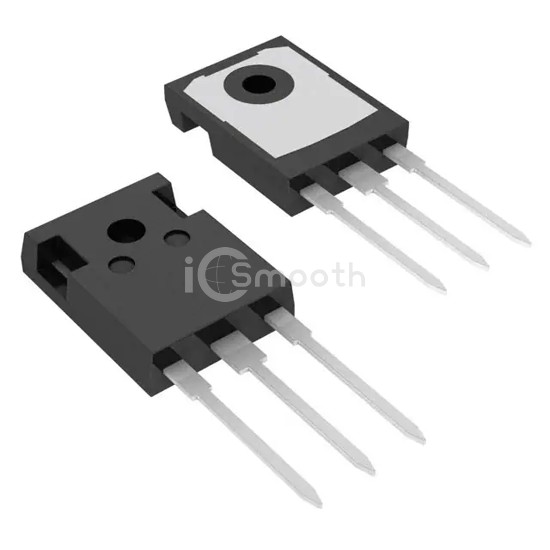

IGBT 600V 120A 600W TO247

FGH60N60SMD-F085 is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 120A 600W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 120 A.

Datasheet Request a Quote

In Stock: 145

Specifications

17 parameters
Product StatusObsolete
IGBT TypeField Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)120 A
Current - Collector Pulsed (Icm)180 A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 60A
Power - Max600 W
Switching Energy1.59mJ (on), 390µJ (off)
Input TypeStandard
Gate Charge280 nC
Td (on/off) @ 25°C22ns/116ns
Test Condition400V, 60A, 3Ohm, 15V
Reverse Recovery Time (trr)42 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
