FGH40T120SMD-F155

In Stock: 9,209

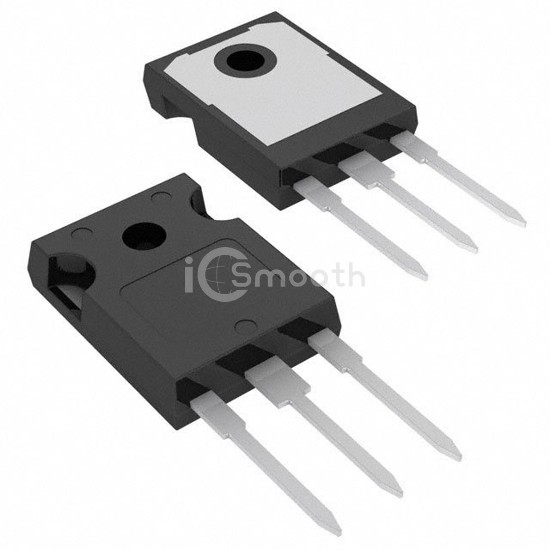

FGH40T120SMD-F155 - onsemi - Transistors - IGBTs - Single
REF: FGH40T120SMD-F155 onsemi
FGH40T120SMD-F155

onsemi

IGBT 1200V 80A 555W TO247-3

FGH40T120SMD-F155 is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 1200V 80A 555W TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 9,209

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 40A
Power - Max555 W
Switching Energy2.7mJ (on), 1.1mJ (off)
Input TypeStandard
Gate Charge370 nC
Td (on/off) @ 25°C40ns/475ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)65 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
