FGH40T100SMD

In Stock: 8,241

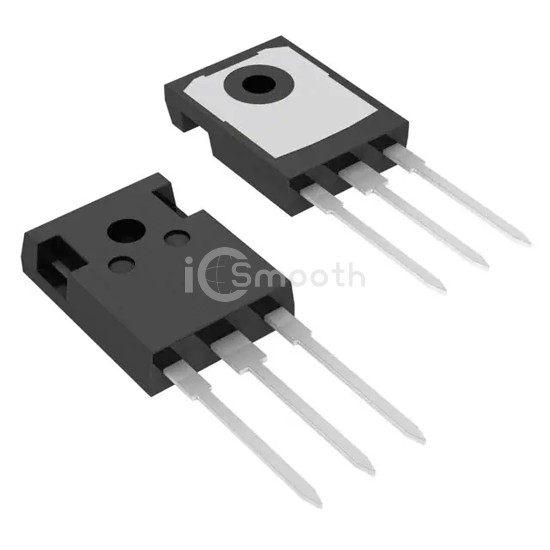

FGH40T100SMD - onsemi - Transistors - IGBTs - Single
REF: FGH40T100SMD onsemi
FGH40T100SMD

onsemi

IGBT 1000V 80A 333W TO247-3

FGH40T100SMD is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 1000V 80A 333W TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 8,241

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1000 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 40A
Power - Max333 W
Switching Energy2.35mJ (on), 1.15mJ (off)
Input TypeStandard
Gate Charge265 nC
Td (on/off) @ 25°C29ns/285ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)78 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
