FGH40N60SMD-F085

In Stock: 8,505

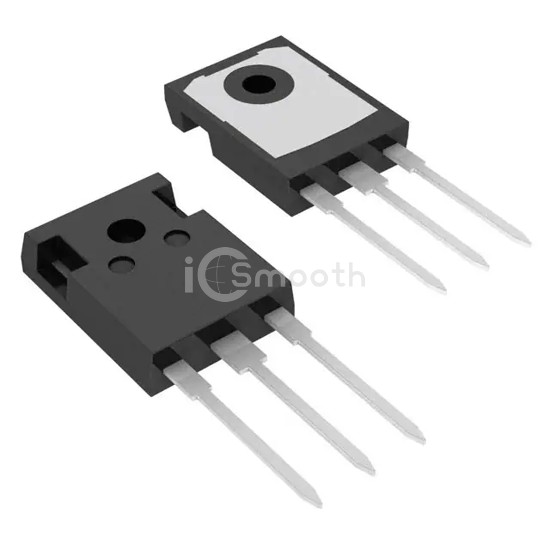

FGH40N60SMD-F085 - onsemi - Transistors - IGBTs - Single
REF: FGH40N60SMD-F085 onsemi
FGH40N60SMD-F085

onsemi

IGBT 600V 80A 349W TO-247-3

FGH40N60SMD-F085 is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 80A 349W TO-247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 8,505

Specifications

17 parameters
Product StatusActive
IGBT TypeField Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 40A
Power - Max349 W
Switching Energy920µJ (on), 300µJ (off)
Input TypeStandard
Gate Charge180 nC
Td (on/off) @ 25°C18ns/110ns
Test Condition400V, 40A, 6Ohm, 15V
Reverse Recovery Time (trr)47 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
