Name: FGB3056-F085
Brand: onsemi
SKU: FGB3056-F085
Price: 3.44 USD
Availability: InStock

REF: FGB3056-F085 onsemi

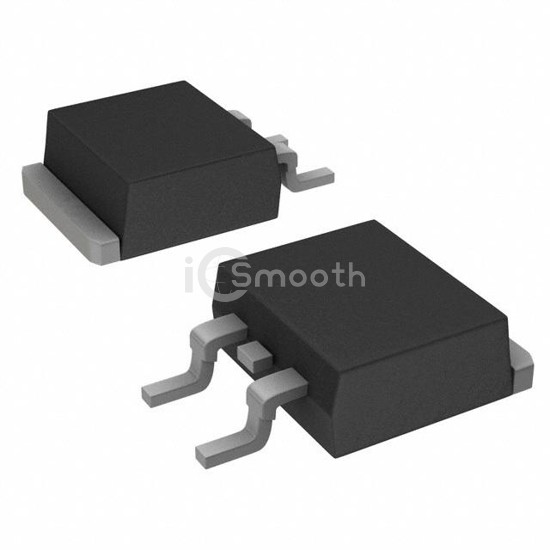

FGB3056-F085

ECOSPARK IGNITION IGBT

FGB3056-F085 is a Transistors - IGBTs - Single manufactured by onsemi. ECOSPARK IGNITION IGBT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 29 A.

Datasheet Request a Quote

In Stock: 551

Specifications

17 parameters

Product Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	29 A
Current - Collector Pulsed (Icm)	-
Vce(on) (Max) @ Vge, Ic	1.55V @ 5V, 8A
Power - Max	200 W
Switching Energy	-
Input Type	Logic

Gate Charge	20 nC
Td (on/off) @ 25°C	1.3µs/8.2µs
Test Condition	-
Reverse Recovery Time (trr)	2.4 µs
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D²PAK-3 (TO-263-3)
