FGAF20N60SMD

In Stock: 1
FGAF20N60SMD - onsemi - Transistors - IGBTs - Single
REF: FGAF20N60SMD onsemi
FGAF20N60SMD

onsemi

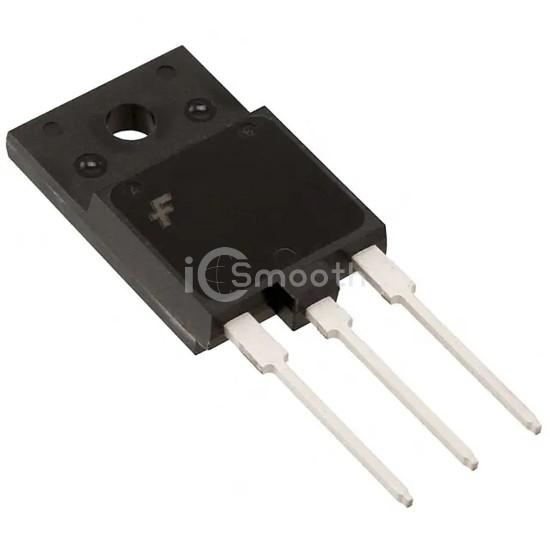

IGBT FIELD STOP 600V 40A TO3PF

FGAF20N60SMD is a Transistors - IGBTs - Single manufactured by onsemi. IGBT FIELD STOP 600V 40A TO3PF. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3 Full Pack, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 1

Specifications

17 parameters
Product StatusObsolete
IGBT TypeField Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)60 A
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 20A
Power - Max75 W
Switching Energy452µJ (on), 141µJ (off)
Input TypeStandard
Gate Charge64 nC
Td (on/off) @ 25°C12ns/91ns
Test Condition400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)26.7 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-3PF
