FGA6560WDF

In Stock: 7,609
FGA6560WDF - onsemi - Transistors - IGBTs - Single
REF: FGA6560WDF onsemi
FGA6560WDF

onsemi

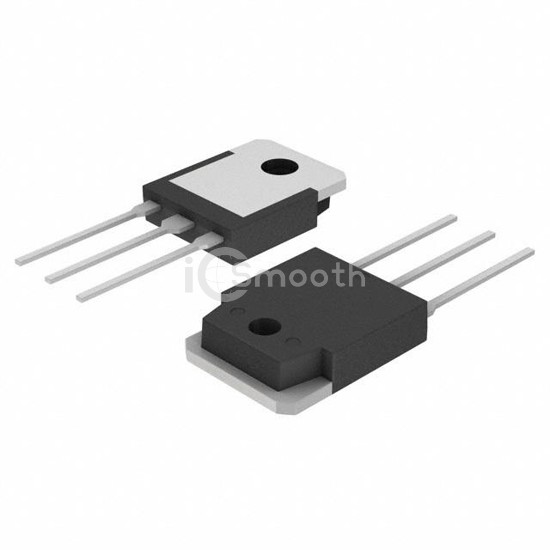

IGBT TRENCH/FS 650V 120A TO3PN

FGA6560WDF is a Transistors - IGBTs - Single manufactured by onsemi. IGBT TRENCH/FS 650V 120A TO3PN. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3, SC-65-3, current - collector (ic) (max) 120 A.

Datasheet Request a Quote

In Stock: 7,609

Specifications

17 parameters
Product StatusLast Time Buy
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)120 A
Current - Collector Pulsed (Icm)180 A
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 60A
Power - Max306 W
Switching Energy2.46mJ (on), 520µJ (off)
Input TypeStandard
Gate Charge84 nC
Td (on/off) @ 25°C25.6ns/71ns
Test Condition400V, 60A, 6Ohm, 15V
Reverse Recovery Time (trr)110 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3PN
