Name: FGA20S125P-SN00336
Brand: onsemi
SKU: FGA20S125P-SN00336
Availability: InStock

REF: FGA20S125P-SN00336 onsemi

FGA20S125P-SN00336

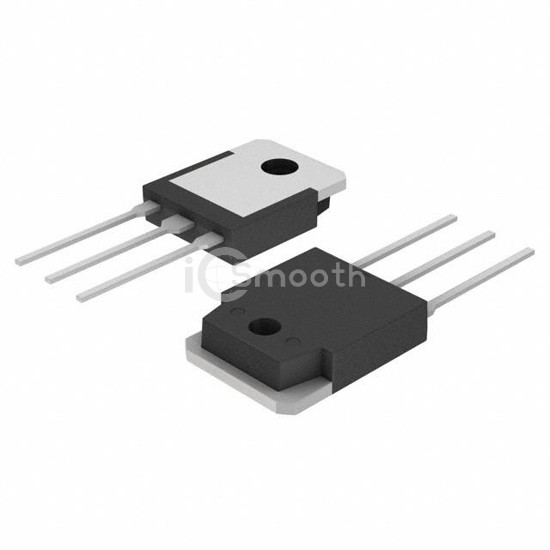

IGBT 1250V 20A 250W TO-3PN

FGA20S125P-SN00336 is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 1250V 20A 250W TO-3PN. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3, SC-65-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 6,033

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	Trench
Voltage - Collector Emitter Breakdown (Max)	1250 V
Current - Collector (Ic) (Max)	40 A
Current - Collector Pulsed (Icm)	60 A
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 20A
Power - Max	250 W
Switching Energy	740µJ (on), 500µJ (off)
Input Type	Standard

Gate Charge	153 nC
Td (on/off) @ 25°C	10ns/400ns
Test Condition	600V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-3, SC-65-3
Supplier Device Package	TO-3PN
