FGA15N120ANDTU

In Stock: 2,711
FGA15N120ANDTU - onsemi - Transistors - IGBTs - Single
REF: FGA15N120ANDTU onsemi
FGA15N120ANDTU

onsemi

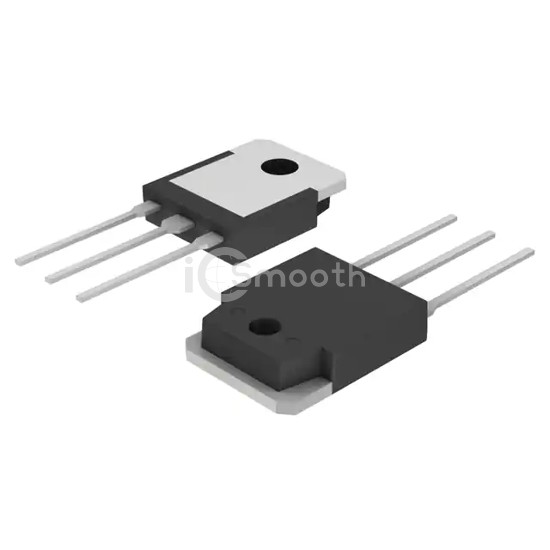

IGBT 1200V 24A 200W TO3P

FGA15N120ANDTU is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 1200V 24A 200W TO3P. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-3P-3, SC-65-3, current - collector (ic) (max) 24 A.

Datasheet Request a Quote

In Stock: 2,711

Specifications

17 parameters
Product StatusObsolete
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)24 A
Current - Collector Pulsed (Icm)45 A
Vce(on) (Max) @ Vge, Ic3.2V @ 15V, 15A
Power - Max200 W
Switching Energy3.27mJ (on), 600µJ (off)
Input TypeStandard
Gate Charge120 nC
Td (on/off) @ 25°C90ns/310ns
Test Condition600V, 15A, 20Ohm, 15V
Reverse Recovery Time (trr)330 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3PN
