Name: FDZ391P
Brand: onsemi
SKU: FDZ391P
Availability: InStock

REF: FDZ391P onsemi

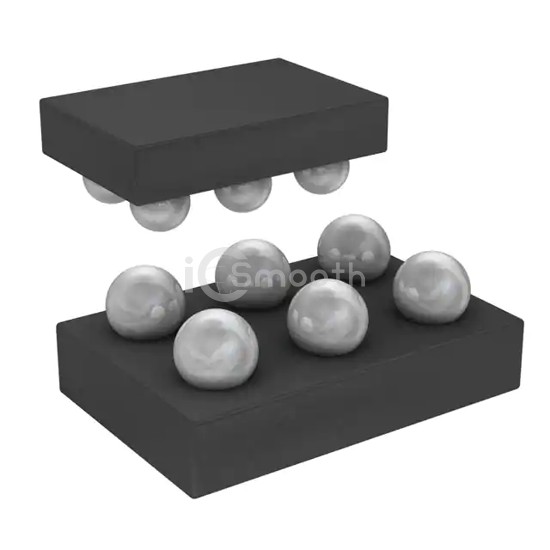

FDZ391P

MOSFET P-CH 20V 3A 6WLCSP

FDZ391P is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 3A 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-XFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 1,496

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	85mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1065 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WL-CSP Thin (1x1.5)
Package / Case	6-XFBGA, WLCSP
