Name: FDZ291P
Brand: onsemi
SKU: FDZ291P
Availability: InStock

REF: FDZ291P onsemi

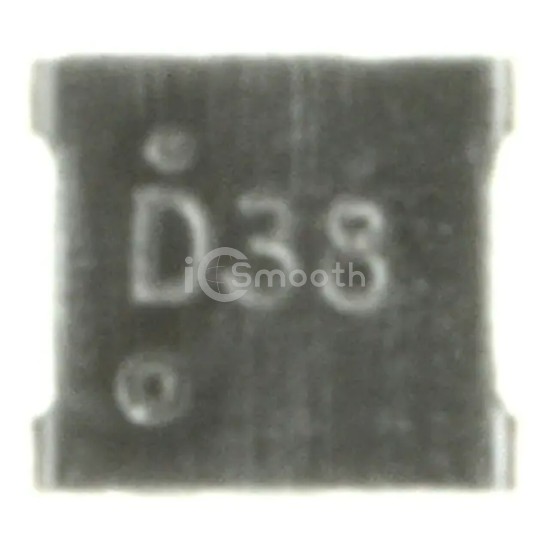

FDZ291P

MOSFET P-CH 20V 4.6A 9BGA

FDZ291P is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 4.6A 9BGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 9-VFBGA.

Datasheet Request a Quote

In Stock: 9,030

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	40mOhm @ 4.6A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1010 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	9-BGA (1.5x1.6)
Package / Case	9-VFBGA
