FDZ191P_P

In Stock: 9,327
FDZ191P_P - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDZ191P_P onsemi
FDZ191P_P

onsemi

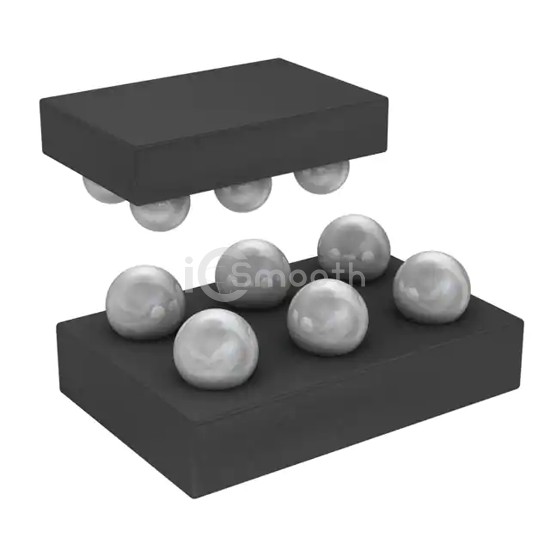

MOSFET P-CH 20V 3A 6WLCSP

FDZ191P_P is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 3A 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFBGA, WLCSP.

Request a Quote

In Stock: 9,327

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs85mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs13 nC @ 10 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds800 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.9W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-WLCSP (1x1.5)
Package / Case6-UFBGA, WLCSP
