FDY302NZ

In Stock: 3,783

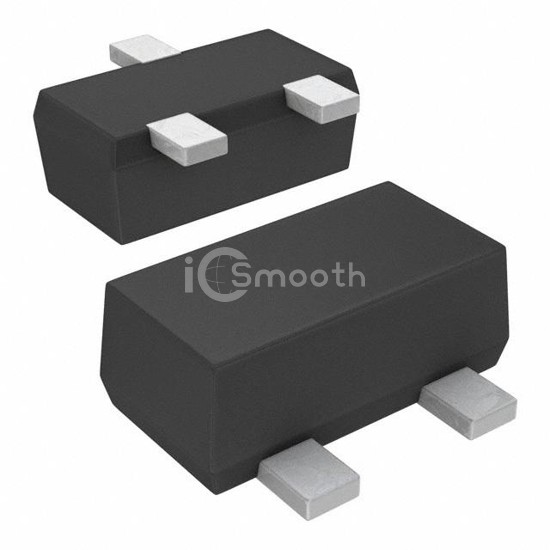

FDY302NZ - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDY302NZ onsemi
FDY302NZ

onsemi

MOSFET N-CH 20V 600MA SC89-3

FDY302NZ is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 600MA SC89-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-89, SOT-490.

Datasheet Request a Quote

In Stock: 3,783

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C600mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs300mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.1 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds60 pF @ 10 V
FET Feature-
Power Dissipation (Max)625mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-89-3
Package / CaseSC-89, SOT-490
