Name: FDWS9509L-F085
Brand: onsemi
SKU: FDWS9509L-F085
Availability: InStock

REF: FDWS9509L-F085 onsemi

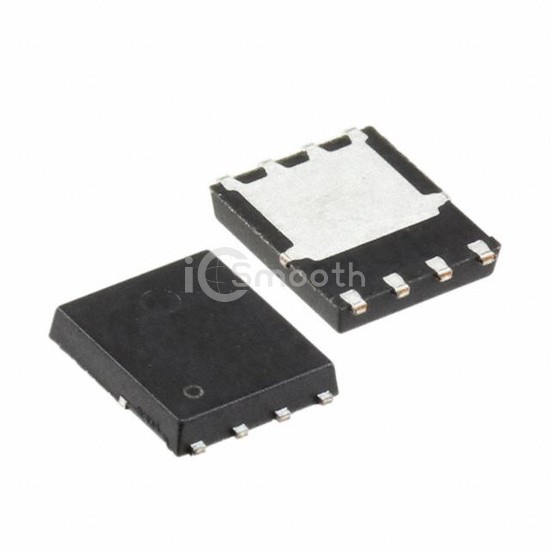

FDWS9509L-F085

MOSFET P-CH 40V 65A 8DFN

FDWS9509L-F085 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 40V 65A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 2,845

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	65A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8mOhm @ 65A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	67 nC @ 10 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	3360 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	107W (Tj)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5.1x6.3)
Package / Case	8-PowerTDFN
