Name: FDWS86068-F085
Brand: onsemi
SKU: FDWS86068-F085
Price: 3.71 USD
Availability: InStock

REF: FDWS86068-F085 onsemi

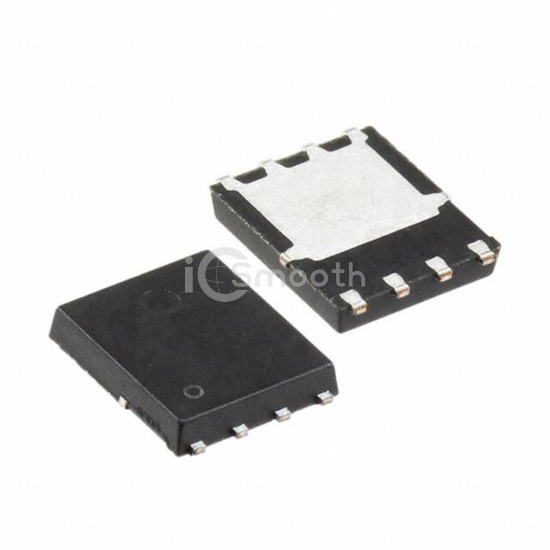

FDWS86068-F085

MOSFET N-CH 100V 80A 8DFN

FDWS86068-F085 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 80A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 4,139

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6.4mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	43 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2220 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	214W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5.1x6.3)
Package / Case	8-PowerTDFN
