Name: FDR842P
Brand: onsemi
SKU: FDR842P
Availability: InStock

REF: FDR842P onsemi

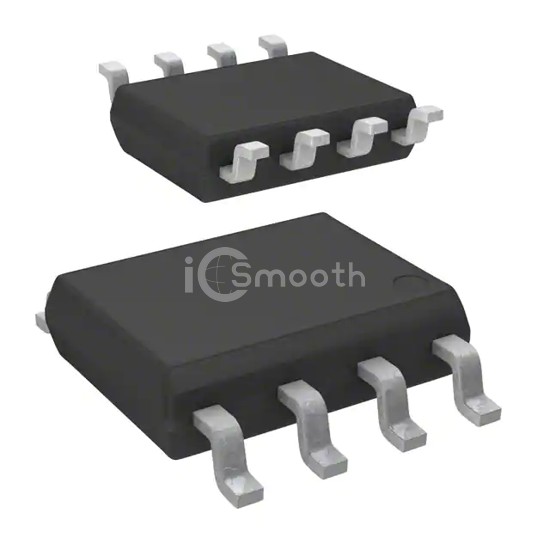

FDR842P

MOSFET P-CH 12V 11A SUPERSOT8

FDR842P is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 12V 11A SUPERSOT8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-LSOP (0.130", 3.30mm Width).

Datasheet Request a Quote

In Stock: 6,336

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	11A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	9mOhm @ 11A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	80 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	5350 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	1.8W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SuperSOT™-8
Package / Case	8-LSOP (0.130", 3.30mm Width)
