Name: FDPF15N65YDTU
Brand: onsemi
SKU: FDPF15N65YDTU
Availability: InStock

REF: FDPF15N65YDTU onsemi

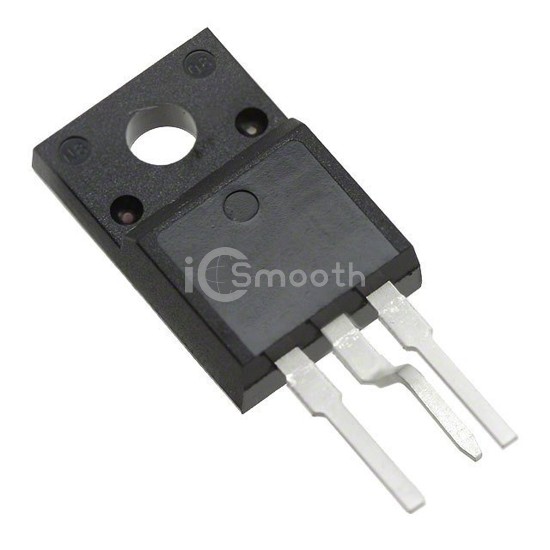

FDPF15N65YDTU

MOSFET N-CH 650V 15A TO220F-3

FDPF15N65YDTU is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 650V 15A TO220F-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, Formed Leads.

Datasheet Request a Quote

In Stock: 2,603

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	440mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	63 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3095 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	38.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220F-3 (Y-Forming)
Package / Case	TO-220-3 Full Pack, Formed Leads
