FDP8D5N10C

In Stock: 146

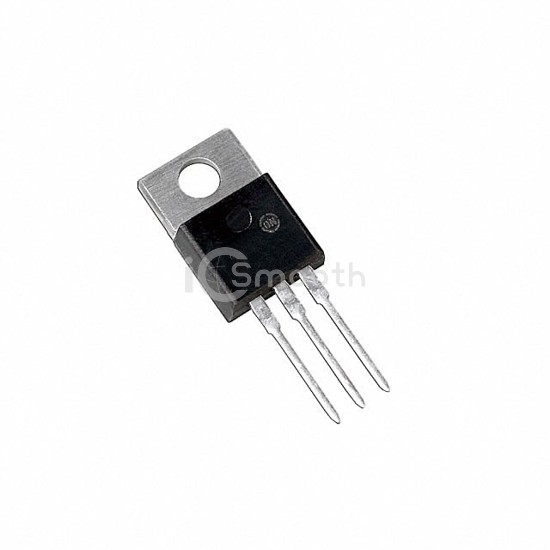

FDP8D5N10C - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDP8D5N10C onsemi
FDP8D5N10C

onsemi

MOSFET N-CH 100V 76A TO220-3

FDP8D5N10C is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 76A TO220-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 146

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs8.5mOhm @ 76A, 10V
Vgs(th) (Max) @ Id4V @ 130µA
Gate Charge (Qg) (Max) @ Vgs34 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2475 pF @ 50 V
FET Feature-
Power Dissipation (Max)2.4W (Ta), 107W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220-3
Package / CaseTO-220-3
