Name: FDP038AN06A0-F102
Brand: onsemi
SKU: FDP038AN06A0-F102
Availability: InStock

REF: FDP038AN06A0-F102 onsemi

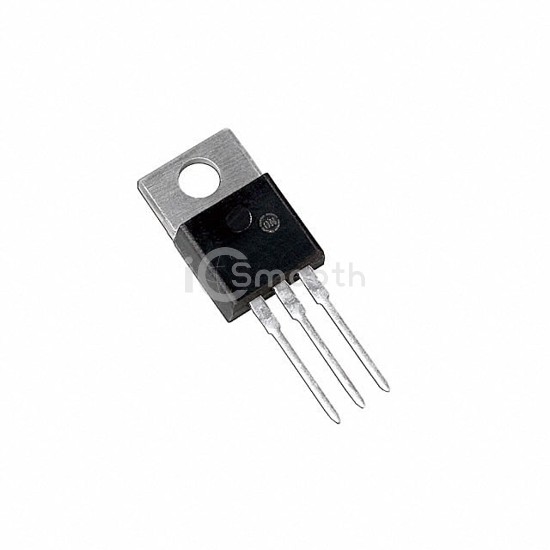

FDP038AN06A0-F102

MOSFET N-CH 60V 80A TO220-3

FDP038AN06A0-F102 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 80A TO220-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 3,040

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.8mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	124 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6400 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	310W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
