FDMT80040DC

In Stock: 5,385

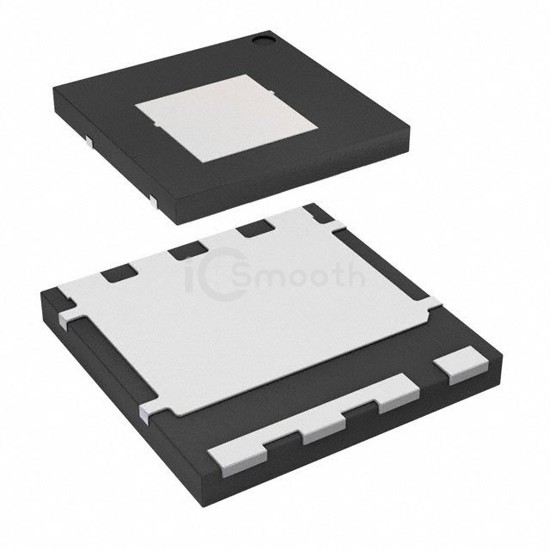

FDMT80040DC - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDMT80040DC onsemi
FDMT80040DC

onsemi

MOSFET N-CH 40V 420A 8PQFN

FDMT80040DC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 420A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 5,385

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C420A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs0.56mOhm @ 64A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs338 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds26110 pF @ 20 V
FET Feature-
Power Dissipation (Max)156W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-Dual Cool™88
Package / Case8-PowerVDFN
